EF12 Solar Powered Ultrasonic Flowmeters

Solar Powered Ultrasonic Flowmeters

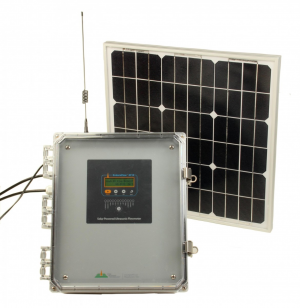

For flow measurement applications in rural areas where electrical power is not accessible, the EnduroFlow Series EF12 solar-powered ultrasonic flow meter provides an ideal solution. It has a solar panel, a rechargeable battery and a low-power consumption high-performance ultrasonic flowmeter. All the components, except transducers, are housed in a weather-proof robust enclosure.

The EF12 solar powered flowmeter has a flash memory which can save the last 512 daily net flow values and the last 128 monthly net flow values. For remote areas where cellular wireless service is available, a 4G modem can be added to the device so that the flow and alarm information can be transmitted to a center office automatically on a preset schedule. Please look at the Spire Metering’s uGalaxy wireless telemetry system for more details.


Insertion Flow Meter

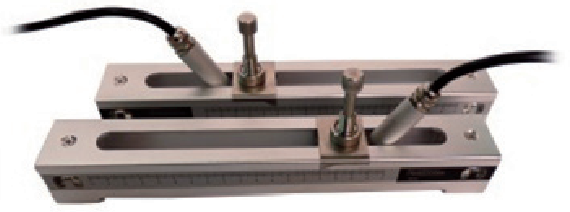

Clamp-On Transducer

Insertion Flow Meter

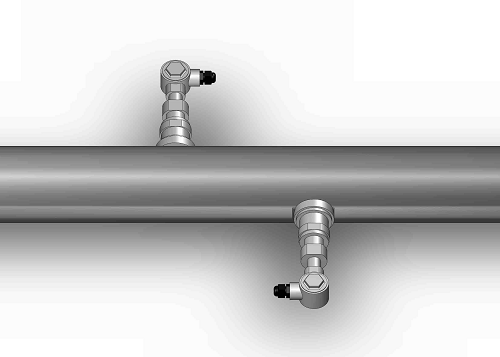

Insertion Transducer


Insertion Flow Meter
Flow-Cell Transducer


Depending on transducer used, the EF12 product family comes as three varieties: EF12B clampon ultrasonic flowmeter, EF12C insertion ultrasonic flowmeter and EF12-F flow-cell ultrasonic flowmeter. All of them have better than 1% accuracy. Click on the “Your Application” tab to tell us where you need to measure today!

Solar Powered Ultrasonic Flowmeters
  • Solar powered. No other power supply is needed. Solar panel rated at 20 Watts
  • Optional StufManager™ PC software for data collection
  • LCD with backlight. 2 x 20 letters. 4 tactile-feedback membrane keypad.
  • RS-485 interface with MODBUS support. Well suited for reliable networking

EF12 Applications

In general, EF12 is an ideal solution for accurate flow measurement in remote area where electrical power is not accessible.
With EF12, you can build a remote flow monitoring network to effectively manage liquid (oil, water, etc.) distribution as well as detect pipeline leakages.
The applicable liquids include:

  • Water/Wastewater
  • Hot/Chilled Water/Mixture of Water and Glycol
  • Oil/Crude Oil/Fuel Oil/Diesel/Lubricant Oil/Hydraulic Oil
  • Petroleum Products
  • Chemical Liquids and Solvents

Specifications

Flow Velocity ± 10 m/s (± 32 ft/s). Bi-directional
Accuracy ±1% of reading ±0.008m/s (±0.03ft/s) in velocity*
Repeatability 0.2%
Response Time 0.5s. Configurable between 0.5s and 99s
Display/Keypad LCD with backlight. 2 x 20 letters. 4 x 4 tactile-feedback membrane keypad. Displays instantaneous flow rate, flow total (positive, negative and net), velocity, time, analog outputs/input
Units English (U.S.) or metric
Parameters Measured Volumetric flow rate, total flow, velocity, analog inputs
Totalizers Positive totalizer, negative totalizer, net totalizer, daily totalizer, monthly totalizer, yearly totalizer, manual totalizer
Security Keypad can be locked with password
Current Output 0/4-20mA isolated output for flowrate, velocity or sound speed. Impedance 0-1k. Accuracy 0.1%
Digital Output Optically isolated OCT (Open Collector Transistor) output. Up to 0.5A load. Can be programmed as:
Pulse signal for flow totalization
ON/OFF signal for special event such as overflow, no flow, reverse flow, leakage alarming, and more
START/STOP signal for batch control Can be used to drive pulse counter, external relay, alarm, PLC counter
Relay Output 1A@125VAC or 2A@30VDC. Can be programmed as:
Pulse signal for flow totalization
ON/OFF signal for special event such as overflow, no flow, reverse flow, leakage alarming, and more
START/STOP signal for batch control Can be used to drive pulse counter, external relay, alarm, PLC counter, or, to control pump, valve, light
Sound Alarm One sound alarm, programmable to specific event such as overflow, no flow, reverse flow, leakage alarm
Inputs One 4-20mA input pressure or liquid level transmitter. This function is only available upon request
Recording Automatically records the daily total of the last 512 days, the monthly total of the last 128 months.
Communication Interface Isolated RS-485 with power surge protection. Supports the MODBUS protocol. Optional 4G module for wireless networking, remote monitoring and remote control.
Software Optional StufManager PC software for real-time data acquisition.
Telemetry** uGalaxy 4G wireless telemetry systems are available upon request
Enclosure Dimensions For main unit: 203mm x 254mm x 102mm (12” x 10” x 4”)
For Solar Panel: 420mm x 420mm x 25mm (17” x 17” x 1”)
Features Weather-Proof Polycarbonate enclosure, (IP66) High Impact, UV resistant, UL-50/c-UL Listed.
Weight 12kg (24lbs)
Environment Temp For main unit: 0-60°C (0-140°F)
For Solar Panel: -40-80°C (-40-176°F)
For Transducer: -20-80°C (-4-176°F)
Power sources Solar Powered by 20W Solar Panel, 12V/17AH rechargeable battery already built-in to meter enclosure.
* Under reference condition and velocity should be above 0.5ft/s. Flowrate is calculated by multiplying velocity with the inner cross-section area of the pipe. ** For wireless telemetry system solution, please contact solutions@spiremt.
