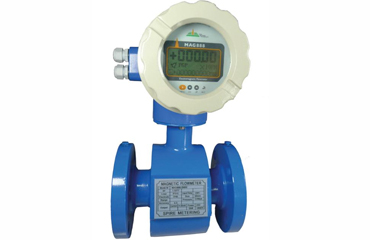

MAG888 Electromagnetic Flow Metering

Spire Metering brings state of art electromagnetic technology to meet your flow control requirements. Designed for measuring a variety of minimally conductive (5 µS/cm) fluids over a wide temperature range, MAG888 delivers the highest degree of accuracy and repeatability to your project. Options for integral or remote flow transmitter, NEMA 4X or submersible flow tube, Full Bore or Insertion design, 90-240 VAC/24 VDC or battery power make MAG888 the versatile choice for all you flow measurement needs. Analog, digital, alarm and serial outputs are STANDARD with every meter, with HART, Modbus, BACnet and M-Bus communications protocols available for seamless integration.

Click the “Your Application” tab to tell us where you need to measure today!

  • In line Electromagnetic Measurement
  • Variety of liner and electrode materials
  • Display and electronics integral or remote to 325’
  • No moving parts
  • Highest accuracy- 0.5%/0.3% o. r.
  • Flanged connection ¾” to 80”/DN20 to DN2000

Applications

INSTALLATIONS:

  • Municipal Drinking Water Distribution Systems
  • Irrigation Systems
  • Building Water Mains
  • Universities
  • Hospitals
  • Industrial Campuses
  • Multi-Unit Residential
  • Multi-Unit Commercial

PURPOSES:

  • Distribution
  • Submetering
  • Compliance Reporting
  • rocess Control
  • Environmental Resource Management

Specifications

Nominal Sizes 1/2” to 80” (DN15 to DN2000)
Fluid Flow Accuracy ± 0.5% of reading/± 0.3% of reading (optional)
Flow Measurement Range 0.3 to 30 fps
Direction Bidirectional with indication
Fluid Temperature -4o F to 392o F (-20o C to 200o C) – liner dependent*
Operator Interface Backlit LCD
Instantaneous display Flow, Total Flow, status
Four soft key local programming
Totalizers Flow Totalizer
Output Signals Analog Output (4-20mA)
OCT (open collector transistor) interface
Programmable as pulse, width selectable to 400.0ms
Programmable as frequency (Hz) output, maximum 2000Hz
Communications Protocols RS485 MODBUS
BACnet
Housing Protection Class IP67 Transmitter (NEMA 4X)
IP67 Flow Tube (NEMA 4X)
IP68(NEMA6P) optional-must be specified
Flow Tube Liner *Polyurethane (140oF) Neoprene (140oF), PTFE (246oF) PFA (356oF) F46 (356oF) Silicon Rubber (392oF) Ceramic (to 8” diameter only)
Electrode Material 316L, Hastelloy B, Hastelloy C, Titanium, Tantalum
Flow Tube Construction 304 sensor in carbon steel powder coat sleeve, carbon steel flanges
Process Connection Rating ASME B16.5 RF Flange, Cl 150 (Cl 300 on request)/ASME B16.47 series * above 28”
Ambient Temperature for Compact or Remote Electronics -13o F to 122o F (-25o C to 50o C)
Ambient Humidi 5% to 95% relative humidity
Minimum Fluid Conductivity 5 μS/cm (20 μS/cm for distilled water)
Power Supply 18-35 VDC/110-240 VAC, < 20W
Configuration Flow tube, with integral or remote transmitter
